FS-6602-16-16-16-4

Sold as: Each
Ordered as: FS-6602-16-16-16-4
$36.21

Details

Details

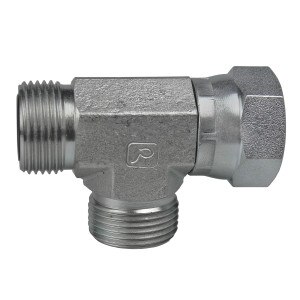

• OFS Swivel Nut Run Tee
• OFS x FOFX x OFS
• 1st) 1" Male O-Ring Face Seal (1 7/16 - 12 Thread)
• 2nd) 1" Female OFS Swivel (1 7/16 - 12 Thread)
• 3rd) 1" Male O-Ring Face Seal (1 7/16 - 12 Thread)
• Black Buna-N 90 Durometer OFS O-Rings
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J1453 # 520432

• Working Pressure 6,000 PSI (4:1 Burst)
• Burst Pressure 24,000 PSI

Crossover Part Numbers

Eaton-Aeroquip Ref: FF2114T1616SEaton-Weatherhead Ref: 4706x16
Parker Ref: 16 R6LO-SSAE Ref: 520432

Specs

Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: TeeTube O.D.: 1"1 - Thread Type: Male OFS1 - Size: -16 (1")

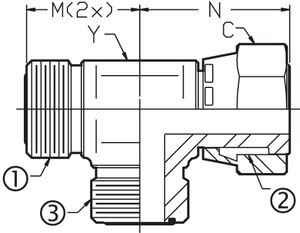

1 - Thread: 1 7/16 - 122 - Thread Type: Female OFS Swivel2 - Size: -16 (1")2 - Thread: 1 7/16 - 123 - Thread Type: Male OFS3 - Size: -16 (1")3 - Thread: 1 7/16 - 12C - Nut Hex: 1 5/8
M - Leg Length: 1.64N - Leg Length: 2.10Y - Flats: 1 7/16Working PSI: 6,000Burst PSI: 24,000Working BAR: 414Burst BAR: 1,655
