FS-6803-08-08-08-4

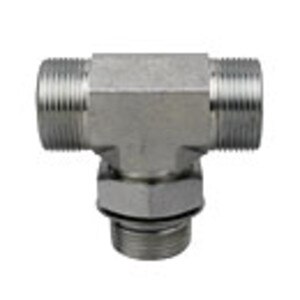

1/2" OFS x 1/2" OFS x 1/2" MB - OFS Straight Thread Branch Tee - Steel
Details
Details
• OFS Straight Thread Branch Tee
• OFS x OFS x MB
• 1st) 1/2" Male O-Ring Face Seal (13/16 - 16 Thread)
• 2nd) 1/2" Male O-Ring Face Seal (13/16 - 16 Thread)
• 3rd) 1/2" Male O-Ring Boss (3/4 - 16 Thread)
• Adjustable Nut/Washer/O-Ring
• Black Buna-N 90 Durometer O-Rings
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J1453 # 520429
• Working Pressure 6,000 PSI (4:1 Burst)
• Burst Pressure 24,000 PSI
• OFS x OFS x MB
• 1st) 1/2" Male O-Ring Face Seal (13/16 - 16 Thread)
• 2nd) 1/2" Male O-Ring Face Seal (13/16 - 16 Thread)
• 3rd) 1/2" Male O-Ring Boss (3/4 - 16 Thread)
• Adjustable Nut/Washer/O-Ring
• Black Buna-N 90 Durometer O-Rings
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J1453 # 520429
• Working Pressure 6,000 PSI (4:1 Burst)
• Burst Pressure 24,000 PSI
Crossover Part Numbers
Eaton-Aeroquip Ref: FF1861T0808SEaton-Weatherhead Ref: 4715x8
Parker Ref: 8 S5OLO-SSAE Ref: 520429
Specs

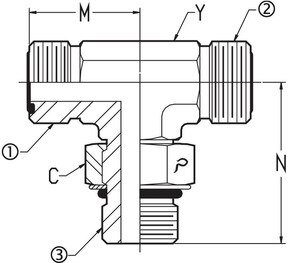

Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: TeeTube O.D.: 1/2"1 - Thread Type: Male OFS1 - Size: -08 (1/2")
1 - Thread: 13/16 - 162 - Thread Type: Male OFS2 - Size: -08 (1/2")2 - Thread: 13/16 - 163 - Thread Type: Male ORB3 - Size: -08 (1/2")3 - Thread: 3/4 - 16C - Nut Hex: 15/16
M - Leg Length: 1.10N - Leg Length: 1.60Y - Flats: 3/4Working PSI: 6,000Burst PSI: 24,000Working BAR: 414Burst BAR: 1,655
