K21145-08-08

1/2" Braided Crimp x 1/2" FOFX 45° - Hydraulic Hose Fitting - Steel

$11.35
Sold as: Each
Ordered as: K21145-08-08
view spec page

Crossover Part Numbers

Parker Ref.: 1J743-8-8

Specs

Fluid Product: ConnectionsProduct Type: Hydraulic Hose FittingsMedia: HydraulicMaterial: SteelOrientation: 45° ElbowTube O.D.: 1/2"1 - Thread Type: K2 Hose End

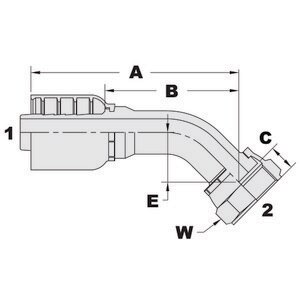

1 - Size: -08 (1/2")2 - Thread Type: Female OFS Swivel 45°2 - Size: -08 (1/2")2 - Thread: 13/16 - 16A - Length: 3.23B - Cut-Off Allowance: 1.97C - Optional Length: 0.43
E - Drop Length: 0.83W - Nut Hex: 1 1/8Working PSI: See HoseBurst PSI: See HoseWorking BAR: See HoseBurst BAR: See Hose
