K22990-06-06

3/8" Braided Crimp x 3/8" FBSPPX 90° - 60° Cone - Hydraulic Hose Fitting - Steel

$11.48
Sold as: Each
Ordered as: K22990-06-06
view spec page

Specs

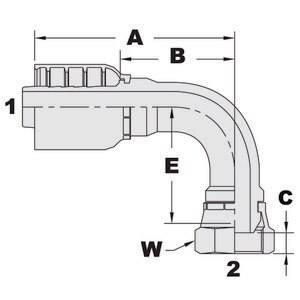

Fluid Product: ConnectionsProduct Type: Hydraulic Hose FittingsMedia: HydraulicMaterial: SteelOrientation: 90° ElbowTube O.D.: 3/8"1 - Thread Type: K2 Hose End
1 - Size: -06 (3/8")2 - Thread Type: Female BSP Swivel 90° - 30° Cone2 - Size: -06 (3/8")2 - Thread: 3/8 - 19A - Length: 2.72B - Cut-Off Allowance: 1.65C - Optional Length: 0.24
E - Drop Length: 1.26W - Nut Hex: 7/8Working PSI: See HoseBurst PSI: See HoseWorking BAR: See HoseBurst BAR: See Hose
