K40645-12-12

3/4" 4-Spiral Wire Crimp x 3/4" FJX 45° - Hydraulic Hose Fitting - Steel

$24.75
Sold as: Each
Ordered as: K40645-12-12
view spec page

Crossover Part Numbers

Parker Ref.: 13771-12-12

Specs

Fluid Product: ConnectionsProduct Type: Hydraulic Hose FittingsMedia: HydraulicMaterial: SteelOrientation: 45° ElbowTube O.D.: 3/4"1 - Thread Type: K4 Hose End

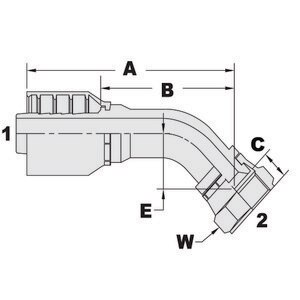

1 - Size: -12 (3/4")2 - Thread Type: Female JIC Swivel 45°2 - Size: -12 (3/4")2 - Thread: 1 1/16 - 12A - Length: 4.53B - Cut-Off Allowance: 2.95C - Optional Length: 0.56
E - Drop Length: 1.02W - Nut Hex: 1 1/4Working PSI: See HoseBurst PSI: See HoseWorking BAR: See HoseBurst BAR: See Hose
